Non-ferrous separators

working widths from 400 to 2000mm

The non-ferrous metal separators can be used wherever non-ferrous metals have to be recovered or separated, e.g. where shredder material , municipal waste, incinerator, ash, electronic scrap, wood chips, glass, batteries, or foundry sand are processed.

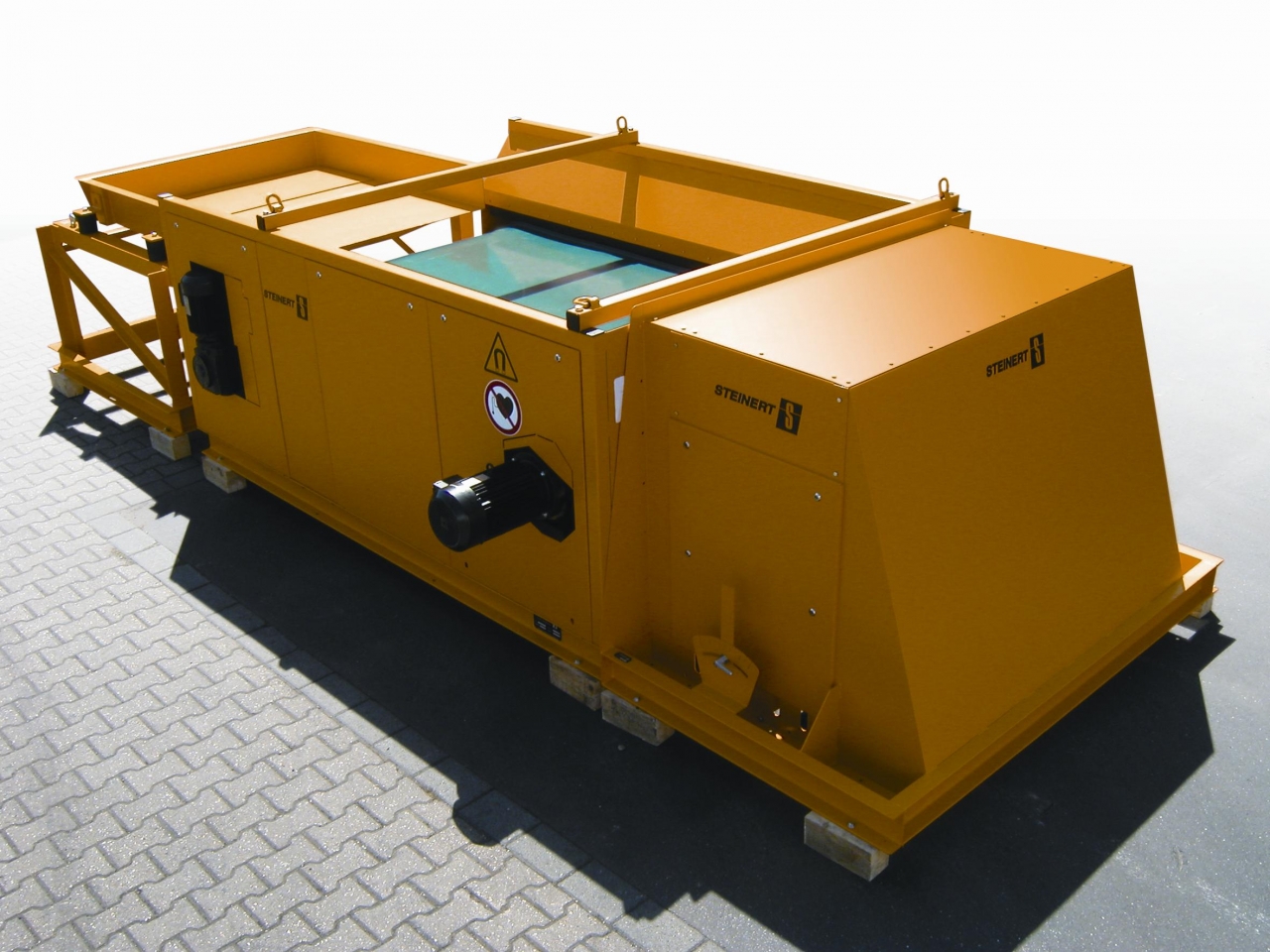

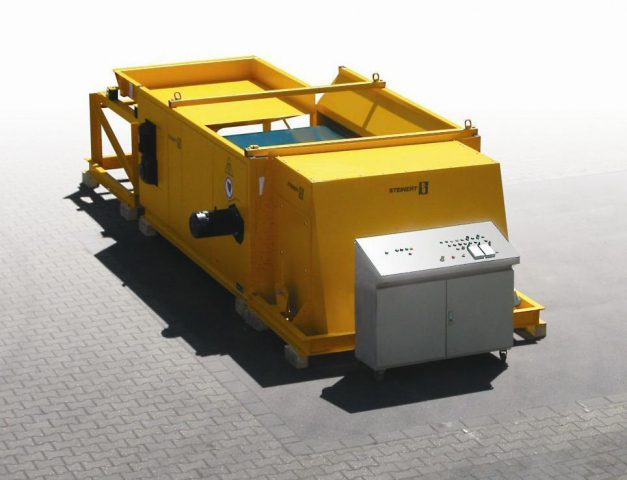

A non-ferrous metal separator basically consists of a short conveyor driven from the feed end. A rapidly rotating system (2500 rpm) of permanent magnets the pole system which generates high-frequency changing magnetic fields, is incorporated in the head drum. These fields create strong eddy currents in the non-ferrous metal parts, in which their own magnetic fields, opposing the external fields , now build up. The NF-metal parts jump out of the remaining material flow.

STEINERT offers by far the widest range of non-ferrous metal separators. This guarantees finding the most cost effective solution for every application! The wide range of models is based on three series of units with special magnetic pole systems and working widths ranging from 400 to 2000mm

Download ENQUIRE or call us on
02 84 11 000
